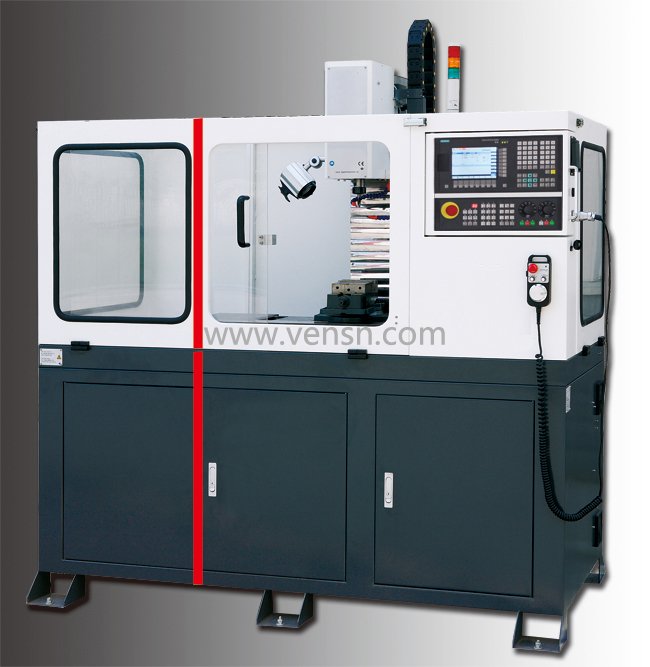

产品型号 |
Model |
M3HS |
M4HS |
|
产品编号 |
Code No |
X1103100 |
X1104100 |
|
机床电器 |
Electric Supply |
|
|
|
总功率 |
Total connection |
5KW |
6KW |
|
主电机功率 |
Driving motor |
2.2KW |
3KW |
|
冷却泵功率 |
Coolant pump |
40W |
40W |
|
主轴 |
Spindle |
|
|
|
主轴锥度 |
Spindle taper |
ER32 |
ER32 |
|
主轴转速 |
Spindle Speed |
150-8600RPM |
150-8600RPM |
|
主轴中心到立柱表面距离 |
Distance spindle-column |
240mm |
275mm |
|
*大面铣直径 |
Face milling dimension (Max) |
Ø75mm |
Ø80mm |
|
*大立铣直径 |
End milling dimension (Max) |
Ø30mm |
Ø32mm |
|
工作台 |
Table |
|
|
|
工作台尺寸（长×宽） |
Table length×width |
750×210mm |
850×240mm |
|
主轴端到工作台面距离 |
Distence spindle-table |
460mm |
30-530mm |
|
T型槽槽宽/间距/数量 |
T-slot(size/distance/number) |
12mm/63mm/3 |
18mm/80mm/3 |
|
*大承载重量 |
Load(Max) |
50kg |
60kg |
|
行程 |
Travel |
|
|
|
X轴 |
X axis |
430mm |
500mm |
|
Y轴 |
Y axis |
200mm |
240mm |
|
Z轴 |
Z axis |
450mm |
500mm |
|
快移速度（X轴、Y轴、Z轴） |
Rapid feed(X,Y,Z axis) |
2000mm/min |
6000mm/min |
|
精度 |
Accuracy |
|
|
|
定位精度 |
Positioning accuracy |
±0.025mm |
±0.025mm |
|
重复定位精度 |
Repeat positioning accuracy |
±0.025mm |
±0.025mm |
|
尺寸 |
Dimensions |
|
|
|
外形尺寸(L×W×H) |
Overall dimension(L×W×H) |
1900×1185×2010mm |
1900×1185×2126mm |
|
包装尺寸(L×W×H) |
Packing size(L×W×H) |
2030×1290×2280mm |
2030×1350×2240mm |
|
净重/毛重 |
Net weight/Gross weight |
760/830KG |
800/870KG |
|
水箱容积 |
Tank capacity |
30L |
30L |
